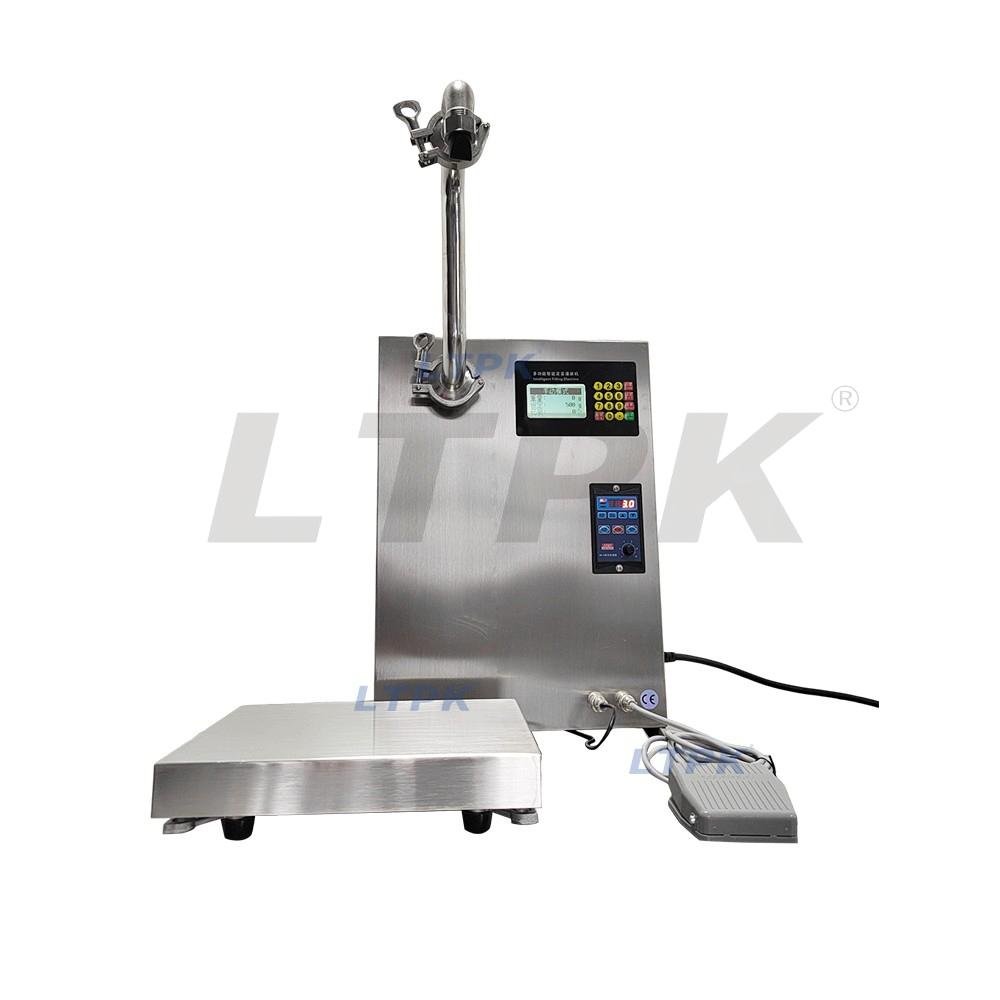

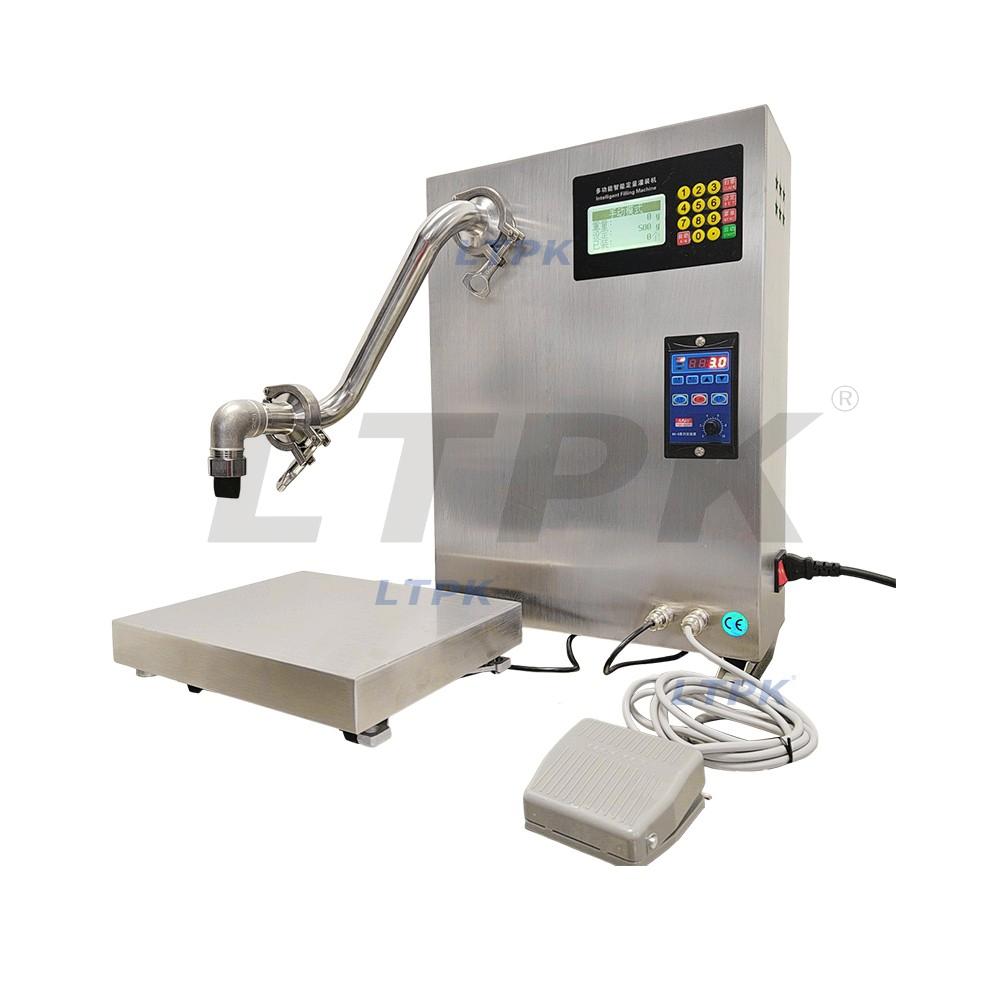

LTPK G2-50 Semi-Automatic Gear Pump Paste Filling Machine

The gear pump filling machine has advantage of high accuracy when filling thick liquid like engine oil,cooking oil,etc. It can be filled by weight or time, with multiple filling modes available. The machine is equipped with a high flow gear pump,which has strong self suction and a wide speed range.The height of filling nozzle can be changed as bottle height,a wide range of applications.

EMAIL

Description:

The gear pump filling machine has advantage of high accuracy when filling thick liquid like engine oil,cooking oil,etc. It can be filled by weight or time, with multiple filling modes available. The machine is equipped with a high flow gear pump,which has strong self suction and a wide speed range.The height of filling nozzle can be changed as bottle height,a wide range of applications.

Application:

Suitable for sesame paste, peanut butter, honey, lubricating grease, non granular and non corrosive paste, non granular and non corrosive viscous liquid, etc

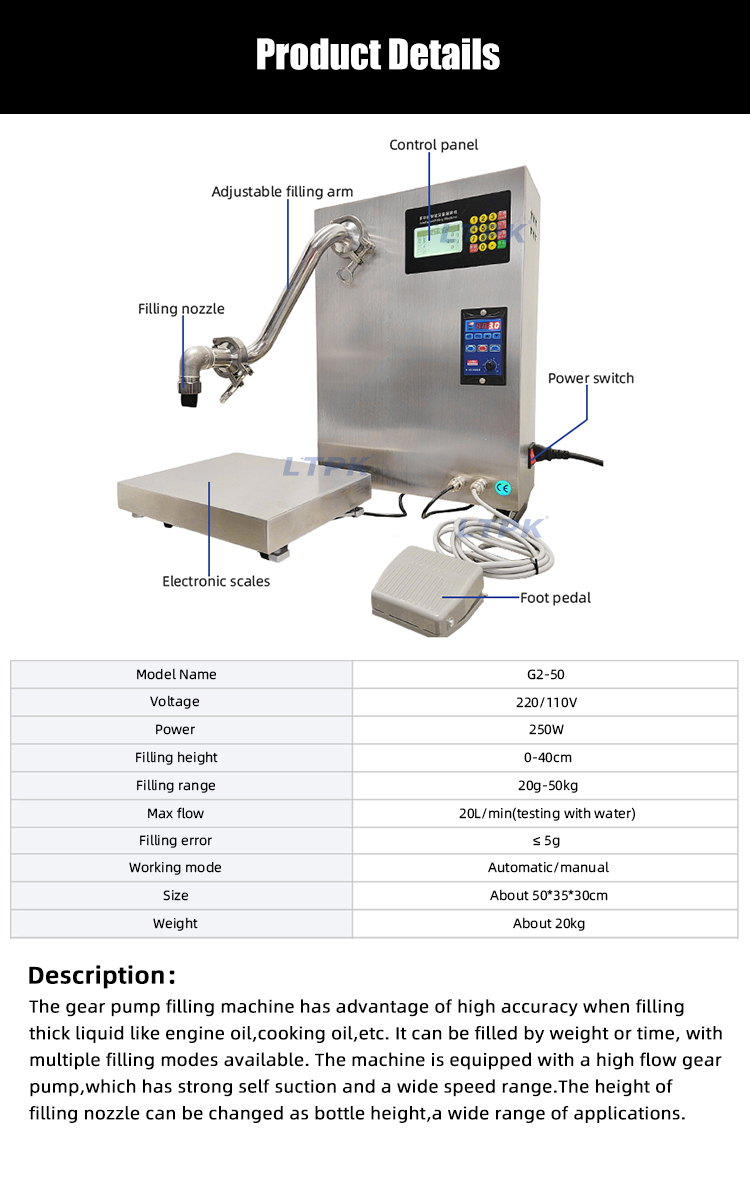

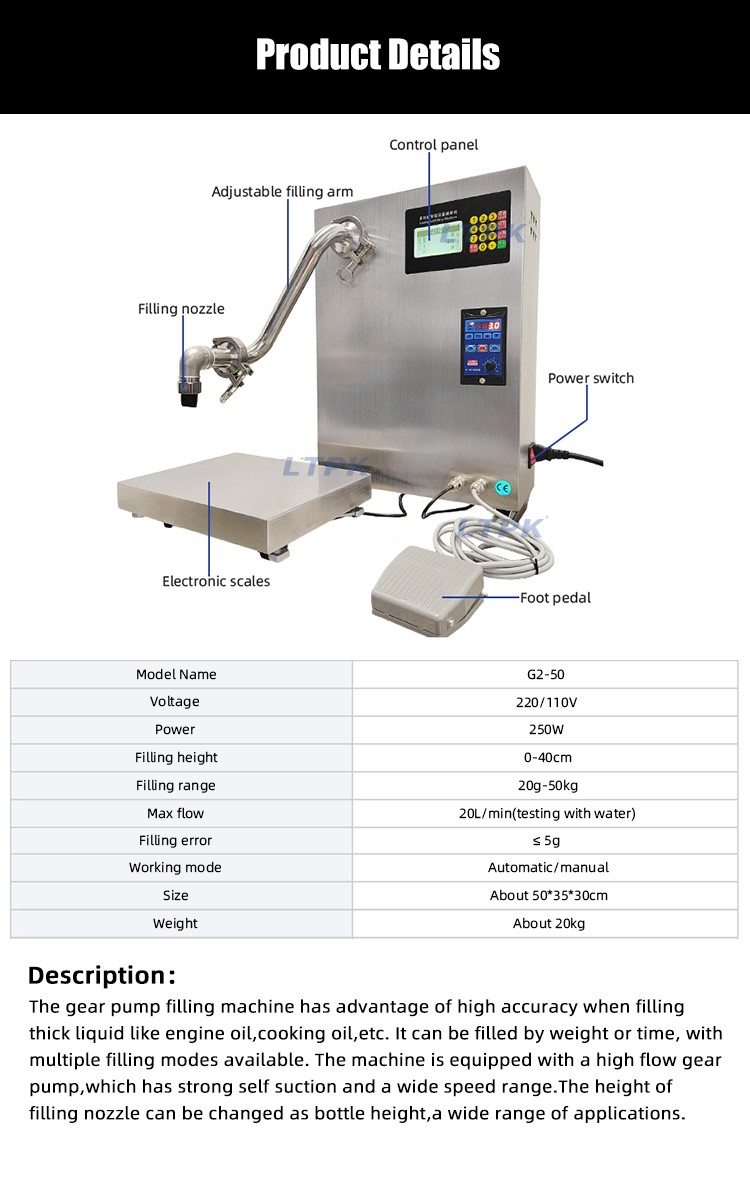

Model

G2-50

Voltage

220/110V

Power

250W

Filling height

0-40cm

Filling range

20g-50kg

Max flow

20L/min(testing with water)

Filling error

≤ 5g

Working mode

automatic/manual

Size

About 50*35*30cm

Weight

About 20kg
